Prompt Builder

The Prompt Builder is a specialized tool for creating, testing, and analyzing AI prompt templates. It provides a complete workflow for developing prompts with variable substitution, multi-scenario testing, and sentiment analysis.

Prompt Builder

Overview

The Prompt Builder allows you to:

Create and manage prompt templates with Handlebars-style variables
Test prompts with multiple variable sets from real or simulated data
Execute prompts against configured AI models
Analyze prompt sentiment and style characteristics
Track version history for each template

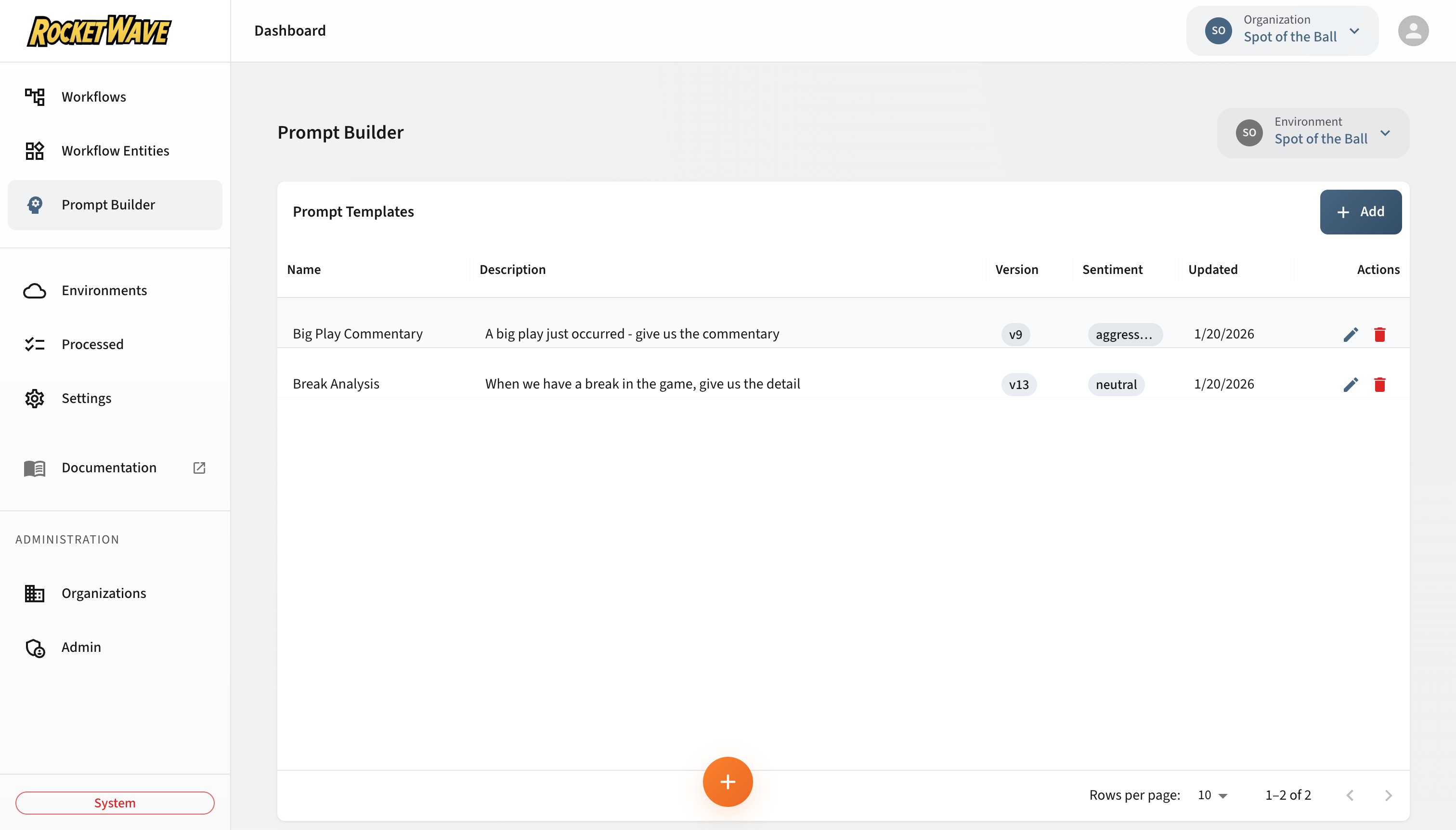

Template List

The main view displays all prompt templates in your environment:

Column	Description
Name	Template name (e.g., "Big Play Commentary")
Description	Brief description of the template's purpose
Version	Current version number (auto-incremented on save)
Sentiment	Detected sentiment profile (aggressive, neutral, etc.)
Updated	Last modification date
Actions	Edit and delete buttons

Creating a Template

Click the + Add button to create a new template:

Create Prompt Template

Required Fields

Field	Description
Name	Unique template name
Model	AI model to use for execution
Prompt Text	The prompt content with optional variables

Variable Syntax

Use Handlebars-style double curly braces for variables:

You are a {{role}} analyst. Analyze the following data:
{{message}}

Current context: {{context.gameState}}

Variables can access nested properties using dot notation (e.g., {{user.profile.name}}).

Test Data Simulator

The Test Data Simulator allows you to define variable values and execute your prompt against the selected model.

Variable Sets

Create multiple variable sets (test scenarios) to test how your prompt performs with different inputs:

Each set contains values for all detected variables
Switch between sets using the tabs
Results are stored per-set for comparison

Execution

Select a model with valid credentials
Configure variable values for the current set
Click the scenario tab to execute
View the execution result and response time

Sentiment Analysis

After execution, click Analyze to run sentiment analysis on both:

Raw Prompt - The template before variable substitution
Executed Result - The AI model's response

Analysis Metrics

Category	Metrics
Sentiment	Overall tone (aggressive, neutral, positive, negative)
Style Dimensions	Formality, Directness, Politeness, Assertiveness
Psychological	Emotionality, Confidence, Dominance, Hostility
Emotions	Interest, Excitement, Tension, Anticipation, Joy, Anger, etc.
Goal Efficacy	How well the prompt achieves its identified goal
Audience Fit	How appropriate the prompt is for its target audience

Comparison Graphs

The Prompt Builder provides visual comparisons of:

Style dimensions between raw prompt and result
Psychological dimensions
Goal and efficacy metrics
Emotion distribution

AI Assistant Integration

The AI Assistant can create both inline prompts AND reusable prompt templates:

Method	Command	Use Case
Inline Prompt	"Create a prompt that summarizes data"	Quick, one-off prompts embedded in entities
Prompt Template	"Create a prompt template for generating welcome messages"	Reusable templates with testing and versioning

What the AI Assistant Can Do

Create prompt templates - Ask: "Create a prompt template called Welcome Message that generates greetings for {{userName}}"
List templates - Ask: "What prompt templates do I have?"
Create inline prompts - For simple workflow entities

When to Use Prompt Builder UI

Use the Prompt Builder screen for:

Testing prompts with different variable sets interactively
Sentiment analysis comparing raw prompts to AI results
Version history viewing and comparing
Visual editing of complex multi-variable templates

Integration with Workflow Entities

Prompt templates can be linked to Prompt workflow entities:

Create the template in Prompt Builder
When creating a Prompt entity, select Template mode
Choose the template from the dropdown
The entity will use the latest version automatically

Sending Context from Processed Queue

You can test prompts with real execution data:

Navigate to Processed Messages
Select a message and view its execution log
Click Send to Prompt Builder on any prompt entity
The context variables are automatically populated as a new variable set

Versioning

Each save increments the template version:

Version history is preserved
Workflow entities using the template get the latest version
You can view which version was used for each sentiment analysis

API Reference

The Prompt Builder uses the Prompt Templates API for full CRUD operations.

Prompt Templates API

Method	Endpoint	Description	Permission
GET	`/api/prompt-templates`	List templates	`entities:read`
POST	`/api/prompt-templates`	Create template	`entities:create`
GET	`/api/prompt-templates/{id}`	Get template by ID	`entities:read`
PUT	`/api/prompt-templates/{id}`	Update template	`entities:update`
DELETE	`/api/prompt-templates/{id}`	Delete template	`entities:delete`
POST	`/api/prompt-templates/{id}/execute`	Execute template	`entities:read`
POST	`/api/prompt-templates/{id}/analyze-sentiment`	Analyze sentiment	`entities:read`
GET	`/api/prompt-templates/{id}/versions`	List version history	`entities:read`
GET	`/api/prompt-templates/{id}/versions/{version}`	Get specific version	`entities:read`

List Templates

GET /api/prompt-templates?organizationId={id}&environmentId={id}&page=1&limit=10&search=welcome

Query Parameters:

Parameter	Type	Required	Description
`organizationId`	UUID	Yes	Filter by organization
`environmentId`	UUID	No	Filter by environment
`page`	integer	No	Page number (default: 1)
`limit`	integer	No	Items per page (default: 10)
`search`	string	No	Search by name (case-insensitive)

Response:

{
  "data": [
    {
      "id": "550e8400-e29b-41d4-a716-446655440001",
      "name": "Welcome Message",
      "description": "Generates personalized welcome messages",
      "promptText": "Write a welcome message for {{userName}}",
      "version": 3,
      "modelId": "model-uuid",
      "model": { "id": "model-uuid", "name": "GPT-4 Turbo" },
      "organization": { "name": "Acme Corp" },
      "environment": { "name": "Production" },
      "variables": { "userName": "string" },
      "variableSets": [
        { "name": "Test User", "values": { "userName": "John" } }
      ],
      "rawSentimentAnalysis": { "sentiment": "neutral", "score": 0.65 },
      "resultSentimentAnalysis": { "sentiment": "positive", "score": 0.85 },
      "sentimentVersion": 2,
      "createdAt": "2025-01-15T10:00:00Z",
      "updatedAt": "2025-01-20T14:30:00Z"
    }
  ],
  "pagination": {
    "page": 1,
    "limit": 10,
    "total": 42,
    "totalPages": 5
  }
}

Create Template

POST /api/prompt-templates
Content-Type: application/json

{
  "organizationId": "550e8400-e29b-41d4-a716-446655440000",
  "environmentId": "660e8400-e29b-41d4-a716-446655440001",
  "name": "Welcome Message",
  "description": "Generates personalized welcome messages for new users",
  "promptText": "You are a friendly assistant. Write a warm welcome message for a new user named {{userName}} who just signed up for our {{productName}} service. Keep it under 280 characters.",
  "modelId": "880e8400-e29b-41d4-a716-446655440003",
  "variables": {
    "userName": "string",
    "productName": "string"
  },
  "variableSets": [
    {
      "name": "Happy User",
      "values": {
        "userName": "Sarah",
        "productName": "Pulse"
      }
    },
    {
      "name": "Business User",
      "values": {
        "userName": "Mr. Johnson",
        "productName": "Enterprise Suite"
      }
    }
  ]
}

Response (201):

{
  "id": "550e8400-e29b-41d4-a716-446655440001",
  "name": "Welcome Message",
  "description": "Generates personalized welcome messages for new users",
  "promptText": "You are a friendly assistant...",
  "version": 1,
  "modelId": "880e8400-e29b-41d4-a716-446655440003",
  "model": { "id": "880e8400...", "name": "GPT-4 Turbo" },
  "variables": { "userName": "string", "productName": "string" },
  "variableSets": [...],
  "rawSentimentAnalysis": null,
  "resultSentimentAnalysis": null,
  "createdAt": "2025-01-27T10:00:00Z",
  "updatedAt": "2025-01-27T10:00:00Z"
}

Update Template

PUT /api/prompt-templates/{id}
Content-Type: application/json

{
  "name": "Welcome Message v2",
  "promptText": "You are an enthusiastic assistant. Create an exciting welcome message for {{userName}}!",
  "modelId": "new-model-uuid",
  "variableSets": [
    {
      "name": "Test Scenario 1",
      "values": { "userName": "Alex" }
    }
  ]
}

Version History

Every update automatically increments the version number and saves the previous state to version history. Content edits (promptText, modelId) also clear the result sentiment analysis.

Delete Template

DELETE /api/prompt-templates/{id}

Response:

{
  "success": true
}

warning

Deleting a template also saves a final version to the history with changeReason: "delete".

Execute Template

Execute the template against the configured AI model with variable substitution.

POST /api/prompt-templates/{id}/execute
Content-Type: application/json

{
  "variableSetIndex": 0
}

Response:

{
  "result": "Welcome aboard, Sarah! 🎉 We're thrilled to have you join Pulse. Get ready to transform your workflows!",
  "executionTime": 1523,
  "model": "GPT-4 Turbo",
  "promptSent": "You are a friendly assistant. Write a warm welcome message for a new user named Sarah who just signed up for our Pulse service. Keep it under 280 characters."
}

Analyze Sentiment

Run sentiment analysis on both the raw prompt and the execution result.

POST /api/prompt-templates/{id}/analyze-sentiment
Content-Type: application/json

{
  "analyzeResult": true
}

Response:

{
  "rawAnalysis": {
    "sentiment": "neutral",
    "sentimentScore": 0.65,
    "styleDimensions": {
      "formality": 0.7,
      "directness": 0.8,
      "politeness": 0.9,
      "assertiveness": 0.5
    },
    "psychological": {
      "emotionality": 0.6,
      "confidence": 0.7,
      "dominance": 0.3,
      "hostility": 0.0
    },
    "emotions": {
      "interest": 0.7,
      "excitement": 0.5,
      "joy": 0.6
    },
    "goalEfficacy": 0.8,
    "audienceFit": 0.85
  },
  "resultAnalysis": {
    "sentiment": "positive",
    "sentimentScore": 0.92,
    "styleDimensions": {...},
    "psychological": {...},
    "emotions": {...}
  }
}

API Examples

curl Examples

List prompt templates:

curl -X GET "https://your-domain.com/api/prompt-templates?organizationId=YOUR_ORG_ID&environmentId=YOUR_ENV_ID" \
  -H "Cookie: appSession=YOUR_SESSION_COOKIE"

Create a prompt template:

curl -X POST "https://your-domain.com/api/prompt-templates" \
  -H "Content-Type: application/json" \
  -H "Cookie: appSession=YOUR_SESSION_COOKIE" \
  -d '{
    "organizationId": "550e8400-e29b-41d4-a716-446655440000",
    "environmentId": "660e8400-e29b-41d4-a716-446655440001",
    "name": "Content Generator",
    "description": "Generates social media content based on topic",
    "promptText": "Write a compelling {{platform}} post about {{topic}}. Keep it under {{characterLimit}} characters. Tone: {{tone}}",
    "modelId": "880e8400-e29b-41d4-a716-446655440003"
  }'

Execute a template:

curl -X POST "https://your-domain.com/api/prompt-templates/TEMPLATE_ID/execute" \
  -H "Content-Type: application/json" \
  -H "Cookie: appSession=YOUR_SESSION_COOKIE" \
  -d '{"variableSetIndex": 0}'

JavaScript Examples

Create a prompt template:

const response = await fetch('/api/prompt-templates', {
  method: 'POST',
  headers: { 'Content-Type': 'application/json' },
  body: JSON.stringify({
    organizationId: 'your-org-id',
    environmentId: 'your-env-id',
    name: 'Welcome Message',
    description: 'Generates personalized welcome messages',
    promptText: 'Write a warm welcome message for {{userName}} who just joined {{productName}}.',
    modelId: 'your-model-id',
    variables: {
      userName: { testData: 'John', type: 'text' },
      productName: { testData: 'Pulse', type: 'text' }
    }
  })
});

const template = await response.json();
console.log('Created template:', template.id);

List and use templates:

// List templates
const listResponse = await fetch(
  `/api/prompt-templates?organizationId=${orgId}&environmentId=${envId}`
);
const { data: templates } = await listResponse.json();

// Execute a template
const execResponse = await fetch(`/api/prompt-templates/${templates[0].id}/execute`, {
  method: 'POST',
  headers: { 'Content-Type': 'application/json' },
  body: JSON.stringify({ variableSetIndex: 0 })
});

const result = await execResponse.json();
console.log('AI Response:', result.result);

MCP Examples

The Prompt Templates API is available via MCP for AI agent integrations:

List templates via MCP:

{
  "tool": "prompt_templates_list",
  "arguments": {
    "organizationId": "550e8400-e29b-41d4-a716-446655440000",
    "environmentId": "660e8400-e29b-41d4-a716-446655440001"
  }
}

Create template via MCP:

{
  "tool": "prompt_templates_create",
  "arguments": {
    "organizationId": "550e8400-e29b-41d4-a716-446655440000",
    "environmentId": "660e8400-e29b-41d4-a716-446655440001",
    "name": "Tweet Generator",
    "description": "Generates engaging tweets about sports events",
    "promptText": "Write an exciting tweet about {{eventType}} by {{playerName}} in the {{teamName}} game. Include relevant hashtags.",
    "modelId": "880e8400-e29b-41d4-a716-446655440003"
  }
}

Execute template via MCP:

{
  "tool": "prompt_templates_execute",
  "arguments": {
    "id": "template-uuid",
    "variableSetIndex": 0
  }
}

Available MCP Tools

Tool	Description
`prompt_templates_list`	List templates with filtering
`prompt_templates_get`	Get template by ID
`prompt_templates_create`	Create new template
`prompt_templates_update`	Update existing template
`prompt_templates_delete`	Delete a template
`prompt_templates_execute`	Execute template with model

See the API Overview for general API patterns and authentication, and the MCP API for MCP integration details.

Overview​

Template List​

Creating a Template​

Required Fields​

Variable Syntax​

Test Data Simulator​

Variable Sets​

Execution​

Sentiment Analysis​

Analysis Metrics​

Comparison Graphs​

AI Assistant Integration​

What the AI Assistant Can Do​

When to Use Prompt Builder UI​

Integration with Workflow Entities​

Sending Context from Processed Queue​

Versioning​

API Reference​

Prompt Templates API​

List Templates​

Create Template​

Update Template​

Delete Template​

Execute Template​

Analyze Sentiment​

API Examples​

curl Examples​

JavaScript Examples​

MCP Examples​

Available MCP Tools​

Overview

Template List

Creating a Template

Required Fields

Variable Syntax

Test Data Simulator

Variable Sets

Execution

Sentiment Analysis

Analysis Metrics

Comparison Graphs

AI Assistant Integration

What the AI Assistant Can Do

When to Use Prompt Builder UI

Integration with Workflow Entities

Sending Context from Processed Queue

Versioning

API Reference

Prompt Templates API

List Templates

Create Template

Update Template

Delete Template

Execute Template

Analyze Sentiment

API Examples

curl Examples

JavaScript Examples

MCP Examples

Available MCP Tools
