Processed Messages

The Processed Messages screen provides visibility into all messages that have been processed by your workflows. Messages are categorized by their final result status and stored in S3 for durability and auditability.

Overview

When a message flows through the Consumer's workflow engine, its outcome is determined by whether it completed successfully, encountered errors, or was ignored. The message and its execution context are saved to an S3 bucket organized by status:

s3://your-bucket/
  └── {organizationId}/
        └── {environmentId}/
              ├── success/     ← Workflows completed successfully
              ├── fail/        ← Workflows encountered errors
              └── ignore/      ← Messages didn't match any workflow

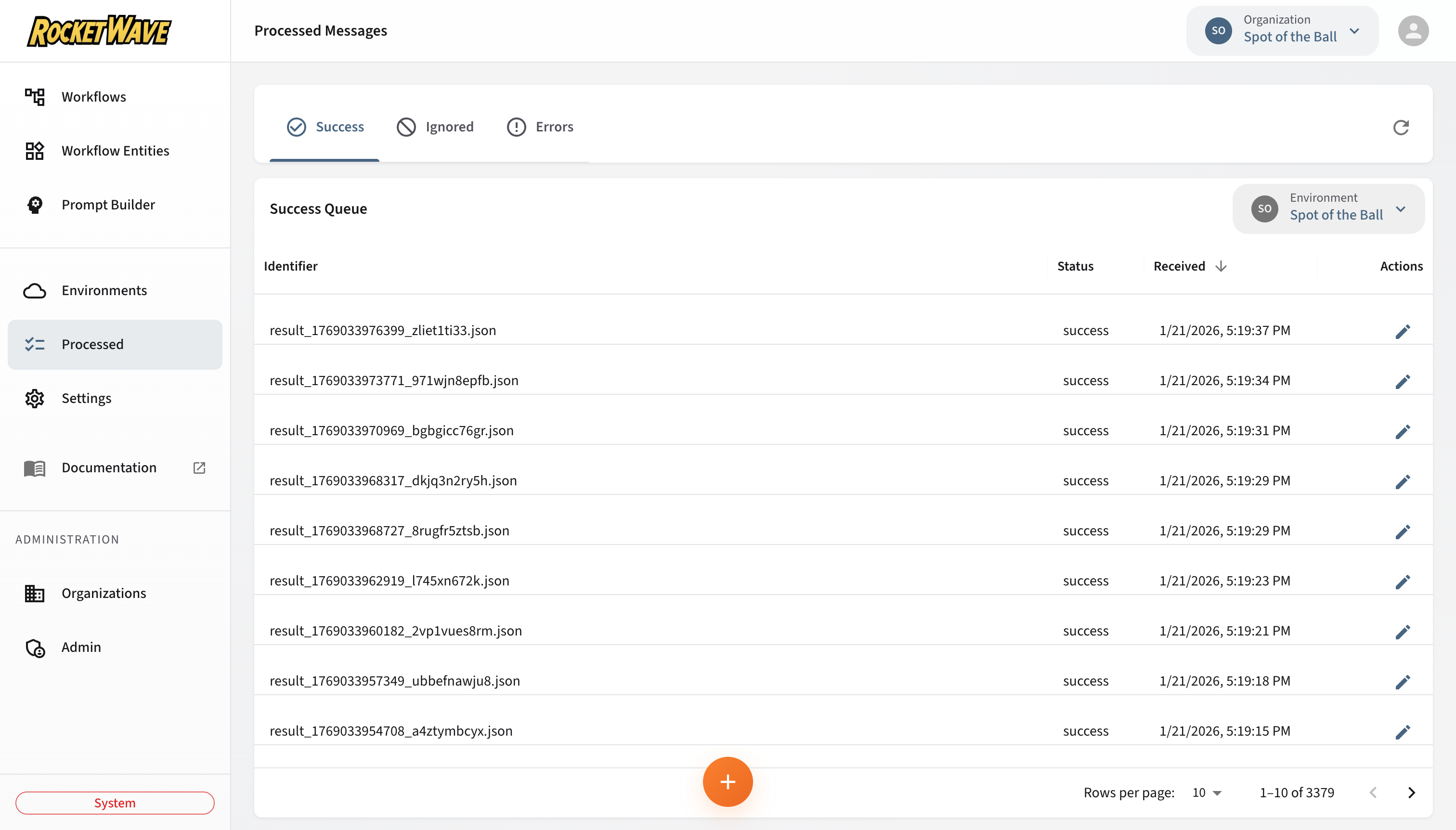

Screen Layout

The Processed Messages screen features:

1. Environment Selector — Filter messages by environment
2. Status Tabs — Switch between Errors, Ignored, and Success queues
3. Data Table — Paginated, sortable list of processed messages
4. Actions — View, delete, resend, send to prompt builder

Status Tabs

Tab	Icon	Description
Errors	⚠️	Workflows that failed due to script errors, timeouts, or exceptions
Ignored	🚫	Messages that didn't match any workflow conditions
Success	✅	Workflows that completed without errors

Data Table Columns

Column	Description
Identifier	Unique filename/key in S3
Status	Result status (success, fail, ignore)
Received	Original timestamp when message was received
Elapsed	Processing duration from received to completion

Sorting

Click any column header to sort the table. The table supports server-side sorting for efficient handling of large datasets:

• Received — Sort by message arrival time (default: newest first)
• Elapsed — Sort by processing duration to identify slow workflows

Elapsed Time Display

The elapsed time column shows how long it took to process the message:

Display	Meaning
125ms	125 milliseconds
1.5s	1.5 seconds
2.3s	2.3 seconds

Performance Analysis

Sort by Elapsed descending to find the slowest workflows. High elapsed times may indicate:

• Slow LLM API calls
• Complex script logic
• External API latency

Message Details

Viewing a Message

Click the Edit icon to open the message detail dialog showing:

1. Message Tab — The original incoming message payload
2. Context Tab — Execution context with variables and workflow results
3. Execution Log Tab — Step-by-step timeline of workflow execution

Message Schema

{
  "message": {
    "id": "msg_12345",
    "organizationId": "org_abc",
    "environmentId": "env_xyz",
    "payload": {
      "event": "user.signup",
      "data": { "userId": "u_789", "email": "user@example.com" }
    }
  },
  "context": {
    "welcomeMessage": "Hello, user@example.com!",
    "____execution_log____": [ ... ],
    "____workflow_metadata____": {
      "workflowId": "wf_001",
      "workflowName": "New User Welcome"
    }
  },
  "timestamp": "2026-01-20T10:30:00.000Z",
  "receivedAt": "2026-01-20T10:30:00.000Z",
  "status": "success"
}

---

Execution Log Timeline

The Execution Log tab displays a visual timeline of every step in the workflow execution. Related log entries are automatically combined by entity for easier reading.

Timeline Entry Structure

Each accordion item shows:

Field	Description
Entity Name	Name of the workflow entity
Entity Type	Event, Prompt, or Action
Duration	Time taken to evaluate this entity
Status	Success (✓) or Error (✗) indicator

Expanded Entry Details

Click an accordion to see detailed information:

Event Entity Details

{
  "type": "event",
  "action": "branch_evaluated",
  "mode": "Multi",
  "logicField": "message.metadata.event_type",
  "logicValue": "play",
  "branchTaken": "play",
  "childCount": 3
}

Field	Description
mode	Single Path, True/False, Multi, or Iterable
conditionResult	Boolean result of condition evaluation
logicField	Field path used for Multi/Iterable branching
logicValue	Actual value found at logicField
branchTaken	Which branch was selected
childCount	Number of child entities to process

Prompt Entity Details

{
  "type": "api",
  "service": "llm",
  "model": "claude-3-sonnet",
  "durationMs": 2340,
  "success": true,
  "outputSize": 1523
}

Field	Description
service	API service called (llm, etc.)
model	Model name used
durationMs	API call duration
outputSize	Response size in characters

Action Entity Details

{
  "type": "script",
  "action": "executed",
  "hasScript": true,
  "success": true,
  "durationMs": 45,
  "scriptPreview": "const result = await fetch..."
}

Field	Description
hasScript	Whether entity has a script
durationMs	Script execution time
scriptPreview	First ~200 characters of script
scriptLength	Total script length

---

Enhanced Error Display

When a workflow fails, the execution log provides detailed error information with actionable suggestions.

Error Entry Schema

{
  "ts": 1705315800123,
  "elapsed": 2500,
  "entityId": "ent_123",
  "entityName": "Process Data",
  "entityType": "Action",
  "type": "script",
  "action": "executed",
  "success": false,
  "error": "Cannot read properties of undefined (reading 'name')",
  "errorType": "TypeError",
  "suggestion": "You tried to access a property on something that is undefined. Add a null check: \"if (obj && obj.property)\" or use optional chaining: \"obj?.property\".",
  "scriptPreview": "const name = data.user.name;...",
  "scriptLength": 342,
  "messageSummary": {
    "organizationId": "org_abc",
    "environmentId": "env_xyz",
    "eventType": "user.action"
  }
}

Error Fields

Field	Description
error	The error message
errorType	JavaScript error type (TypeError, ReferenceError, etc.)
suggestion	AI-generated suggestion for fixing the error
scriptPreview	Snippet of the failing script
messageSummary	Key fields from the message for context

Common Error Types and Suggestions

Error Type	Common Cause	Suggestion
TypeError	Accessing property of undefined	Use optional chaining (?.) or null checks
ReferenceError	Using undefined variable	Check variable spelling or ensure it's defined
SyntaxError	Invalid JavaScript syntax	Check for missing brackets, quotes, or semicolons
TimeoutError	Script exceeded 5s limit	Optimize script or increase timeout

---

Send to Prompt Builder

For Prompt entities in the execution log, you can send the complete execution context to the Prompt Builder for testing and iteration.

How to Use

1. Open a processed message
2. Navigate to the Execution Log tab
3. Find a Prompt entity entry
4. Click the Send to Prompt Builder icon (arrow)

What Gets Copied

All context variables from the execution are transferred:

Variable	Description
message	The original incoming message
latestPromptResponse	Response from previous Prompt entities
promptData	Parsed JSON from prompt responses
All custom variables	Any variables set by scripts
Environment variables	Variables from Admin Console

---

Context Variables Display

The Context tab in message details shows variables captured during workflow execution. Variables are organized into two distinct sections for clarity:

Environment Variables Section

Environment variables (defined in Settings) are displayed in a separate collapsible section:

Display	Description
Variable Name	The name of the environment variable (e.g., OPENAI_API_KEY)
Lock Icon	Indicates this is a secure environment variable
env badge	Visual indicator that this is an environment variable
Value	Displayed as ••••••• (masked for security)

Security

Environment variable values are never displayed in the UI, even in the execution context. They are always shown as masked (•••••••) to prevent accidental exposure of sensitive credentials.

Execution Variables Section

Variables created during workflow execution are displayed with their full values:

Variable	Description
message	The incoming message payload (expandable JSON)
latestPromptResponse	AI model response from Prompt entities
Custom variables	Any variables set by entity scripts

How It Works

1. Environment variables are injected into the V8 context at execution start
2. The variable names are tracked in __env_variable_names__
3. When displaying context, variables are categorized:
   • Variables in __env_variable_names__ → Environment Variables section
   • All other variables → Execution Variables section
4. Internal variables (prefixed with ____) are filtered out

Use Cases

• Debug prompt issues — Test the exact prompt with real data
• Iterate on prompts — Refine prompts using actual message payloads
• Compare versions — Test different prompt versions against same data

---

Operations

Filtering by Environment

1. Use the Environment Selector dropdown at the top
2. Select a specific environment or leave empty to view all
3. The table automatically refreshes with filtered results

Deleting Messages

Single Delete:

1. Click the Delete icon (trash) in the row actions
2. Confirm in the dialog

Bulk Delete:

1. Select multiple rows using checkboxes
2. Click Delete Selected in the toolbar
3. Confirm the deletion

Purging a Queue

To delete all messages in a queue:

1. Click the Purge All button in the toolbar
2. Review the confirmation showing:
   • Queue name (e.g., "Error Queue")
   • Environment name (if filtered)
3. Confirm to permanently delete all messages

danger

Purging is irreversible. All messages in the selected queue (and environment, if filtered) will be permanently deleted from S3.

Resending Messages

The Resend feature allows you to reprocess messages through the workflow engine:

1. Open a message detail dialog
2. Click Resend
3. The message will be re-submitted to the Kinesis stream for reprocessing

This is useful for:

• Retrying after fixing a bug in a workflow
• Reprocessing after updating environment variables
• Testing workflow changes against historical messages

---

Understanding Results

Success Status

A message receives success status when:

1. At least one workflow's first Event entity condition matched
2. The workflow traversed through all entities without errors
3. All scripts completed successfully

Example workflow path:

Event (Check User Type) → Prompt (Generate Welcome) → Action (Post Message)

Fail Status

A message receives fail status when:

1. A workflow's Event condition matched (workflow "fired")
2. A subsequent script throws an unhandled exception
3. A script execution times out (default: 5 seconds)
4. An external API call fails and isn't handled

Ignore Status

A message receives ignore status when:

1. No workflows exist for the organization/environment
2. No workflow's first Event entity condition matched the message

This is the default outcome for messages that don't trigger any workflow.

First-Match-Wins Logic

The Consumer uses "first-match-wins" logic:

1. Workflows are evaluated in order
2. The first workflow whose initial Event condition passes is executed
3. No other workflows are evaluated for that message
4. If the fired workflow completes successfully → success
5. If the fired workflow has errors → fail
6. If no workflow fires → ignore

---

Monitoring & Debugging

Debugging Failed Workflows

1. Navigate to the Errors tab
2. Sort by Received to see recent failures
3. Open a failed message to view:
   • The original message payload
   • The error message with suggestions
   • Which entity caused the failure
4. Click Send to Prompt Builder to test Prompt entities
5. Navigate to Workflow Entities to fix the script
6. Optionally resend the message to verify the fix

Analyzing Ignored Messages

High numbers of ignored messages may indicate:

• Missing workflow configurations
• Event conditions that are too restrictive
• Messages being sent to the wrong environment
• Cache not yet refreshed with new workflows

Review ignored messages to ensure your workflows are capturing the events you expect.

Performance Analysis

Use the Elapsed column to identify performance issues:

1. Sort by Elapsed descending
2. Look for patterns in slow messages
3. Check the execution log for which entities take longest
4. Common culprits:
   • LLM API calls (typically 1-3 seconds)
   • External API calls without timeouts
   • Complex script logic

---

API Reference

Processed messages are managed through the /api/processed-queue endpoint.

Quick Reference

Operation	Method	Endpoint
List	GET	/api/processed-queue?organizationId={id}&status={status}
Get by ID	GET	/api/processed-queue/{key}
Delete	DELETE	/api/processed-queue/{key}
Bulk Delete	DELETE	/api/processed-queue?keys={key1,key2}
Purge	DELETE	/api/processed-queue?organizationId={id}&status={status}

Query Parameters

Parameter	Required	Description
organizationId	Yes	Filter by organization
environmentId	No	Filter by environment
status	Yes	Queue folder: success, fail, or ignore
page	No	Page number (default: 1)
limit	No	Items per page (default: 10)
sortBy	No	Sort field: receivedAt (default), timestamp
sortOrder	No	Sort direction: desc (default), asc

Response Schema

{
  "data": [
    {
      "id": "org_abc/env_xyz/success/result_1705315800123_abc123.json",
      "fileName": "result_1705315800123_abc123.json",
      "organizationId": "org_abc",
      "environmentId": "env_xyz",
      "message": { ... },
      "context": { ... },
      "timestamp": "2026-01-20T10:30:00.254Z",
      "receivedAt": "2026-01-20T10:30:00.000Z",
      "status": "success"
    }
  ],
  "pagination": {
    "page": 1,
    "limit": 10,
    "total": 1523,
    "totalPages": 153
  },
  "sorting": {
    "sortBy": "receivedAt",
    "sortOrder": "desc"
  }
}

---

Related Topics

• Environments — Configure environments for message isolation
• Workflow Entities — Configure entities and scripts
• Consumer Evaluator — Understand how messages are processed
• Prompt Builder — Test and iterate on prompts
